MTX-2E Spec.

1/10 GP Touring Car MTX-2

■ Technical Data ■

・Length・・・・・・・・・・・・380 mm

・Width・・・・・・・・・・・・198 mm

・Wheel Base・・・・260 mm

・Tread (F/R)・・172mm / 172mm

・F. Caster Angle・・・6.2°～14°

・Gear Ratio・・1st 7.421:1 /
　　　　　　　　　 2nd 5.717:1

・Weight・・・・・・・・N/A

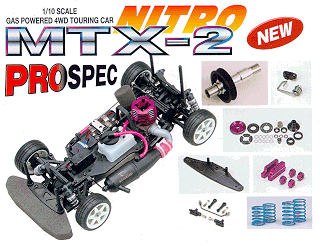

1/10 Scale GP 4WD Touring Car

MTX-2
Powered with Nova/Mugen MT12

               ●Chassis Kit
                    ●Chassis/MT12 Engine Kit
                    ●Chassis Kit for O.S.CV Hyper Engine

                  *MT12 Engine is the first rear exhaust
                  engine in 12 class which developed between
                  Novarossi/Mugen Seiki.

MTX-2 is inherited the blood of

1/8, 1/10 pure racer.

The fastest 1/10 scale GP Touring Car!

■ Features ■

・Belt Drive 4WD

・Cam Type 2-Speed Gear
　Housing

・3 PC Clutch

・Disk Blake

・Turn Buckle Steering Rod

・3 mm (A70-75) Chassis

・Front Urethane Bumper

・75cc Fuel Tank
　Filter-equipped

・Resin Radio Plate

・Manifold for MT12 Engine

・Adjustable Front Bump
　Stop/Rebound Stop

・Adjustable Rear Bump
　Stop/Rebound Stop

・Adjustable the angle of
　Front/Rear Damper

・Adjustable Camber/Toe/
　Caster angle(only Front)

・Full-Bearing

・Air Filter
